60JB50K/57ZWN55

 Brushless Motor Technical DataTYPERated VoltageVDCNo-load Speedr/minNo-load CurrentARated...

product details

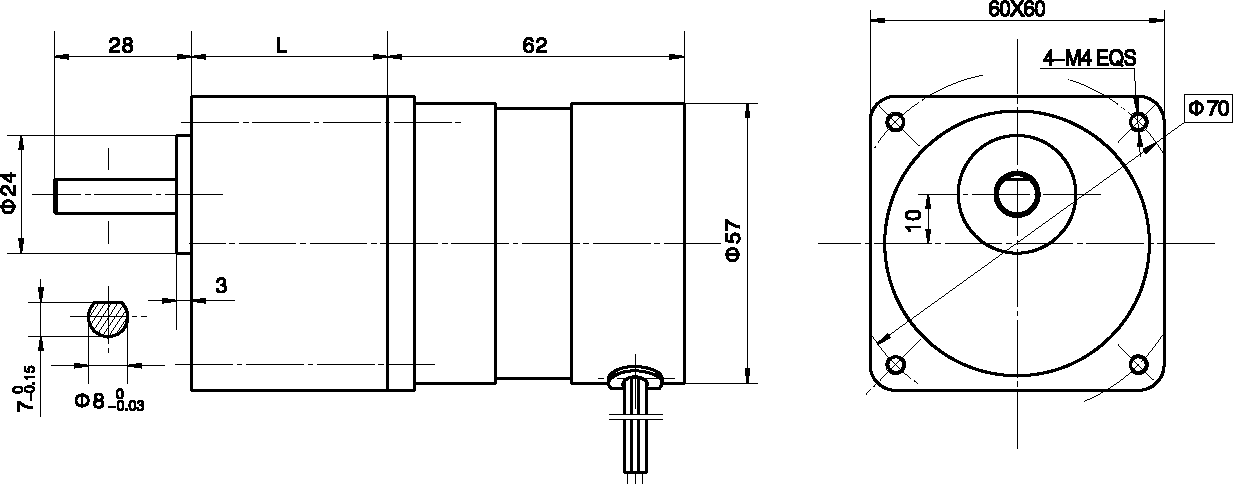

Outline reference diagram

TYPE

Rated Voltage

VDC

No-load Speed

r/min

No-load Current

A

Rated Speed

r/min

Rated Torque

mN.m

Output power

W

Rated Current

A

57ZWN55-2420

24

2000

200

1300

85

10

1.2

57ZWN55-2430

24

3000

400

2250

110

25

2.0

57ZWN55-2420 BLDC Motor

Reduction ratio	3	5	7.5	10	12.5	15	25	30	50	75	90
Number of gear trains	2	2	2	2	2	2	3	3	3	4	4
Lengh(L) mm	32	32	32	32	32	32	40	40	40	40	40
No-lod speed r/min	667	400	267	200	160	133	80	67	40	27	22
Rated speed r/min	433	260	173	130	104	86	52	43	26	17	14
Rated torque N.m	0.20	0.34	0.51	0.68	0.86	1.2	1.5	1.8	3.1	4.2	5.0
N.m Max. permissible load in a short time	2.5	2.5	2.5	2.5	2.5	2.5	5.0	5.0	5.0	10	10

57ZWN55-2430 BLDC Motor

Reduction ratio	3	5	7.5	10	12.5	15	25	30	50	75
Number of gear trains	2	2	2	2	2	2	3	3	3	4
Lengh(L) mm	32	32	32	32	32	32	40	40	40	40
No-lod speed r/min	1000	600	400	300	240	200	120	100	60	40
Rated speed r/min	750	450	300	225	180	150	90	75	45	30
Rated torque N.m	0.26	0.44	0.66	0.89	1.1	1.3	2.0	2.4	4.0	5.0
N.m Max. permissible load in a short time	2.5	2.5	2.5	2.5	2.5	2.5	5.0	5.0	5.0	10
